Final Assessment [Heat Insulator product]

In this assessment, there are two parts of it, part one is about heat calculation of all walls of the room then the problem wall should be analyzed and we will make insulator product from it.

My product is Thermal Cooling Pocket Sheet which help to reduce Heat Transfer by activating endothermic reaction from cooling gel.

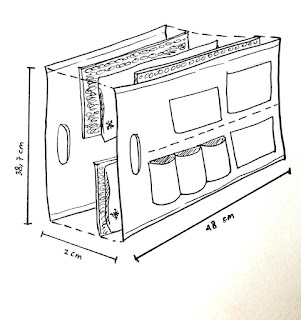

Product Sketch

Product Ambassador

Come with Valcro Tape

Back Side/ Adhesive Side

Product Details

Description

Install this Cooling Sheet on the window panel or any panel on your walls to make your room cooler. With the cooling gel, it helps to lower the room temperature which creating a cooler room. This was because in cooling gel pack contains water that are wrapped in pack with ammonium nitrate fertilizer which create endothermic reaction that absorbs the heat.

Figure 1 Thermal Cooling Pocket Sheet

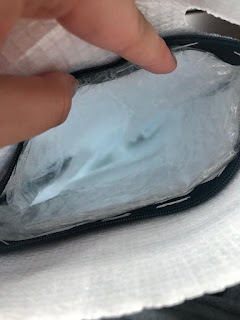

This cooling gels are placed inside the thermal aluminium sheet that has 2 different sides. The side that will placed facing the outside part is made of polyester that help to block the light and heat. The opposite side is the thermal aluminium sheet with pockets which make it multi-functional to store things.

Length               : 480 mm

Width                 : 387 mm

Weight               : 1 kg

Thickness          : 150 mm

Details

·        Easy to be installed

·        Accomodated with Velcro Tape on outside-facing sheet

·        Easy to be clean

·        Cooling Effect from the gel inside the sheet can last for 3-4 hours in room temperature

·        Maintenance is required by replacing the cooling gel every 6-12 months

·        Supported with zippable sheet for easy maintenance also increase the intensity of cooling gel effects

·        Divided into two parts which increase the cooling strength

Installment Instructions

1.      Refrigerate the cooling gel packs minimum 8 hours for optimum effect.

2.      After done refrigerating, place the cooling gel packs inside the thermal sheet.

3.      Attach the Velcro Tape ① on aluminium frame of the window or any desired wall surface.

4.      Stick the pair of Velcro Tape ② on ① and wait for the cooling effects.

Care Instructions

·        Use damp tissue/cloth to clean the thermal aluminium sheet

·        Refrigerate cooling gel packs for at least 4 hours before using the product

·        Replacing the cooling gel packs if there is a leakage on gel packs or dried out gel packs

·        It is recommended to replace the gel packs in 8 months to prevent bacteria infection

For detail informations in the report and can be accessed on google drive link below.

https://drive.google.com/file/d/13FCCaWMbhUnlgndsiAZWuNy-LwX_yJB3/view?usp=sharing
